Creating Prefabs

Prefabs in WaveMaker are reusable application components that encapsulate UI, logic, and service interactions into a modular unit. Once created, a Prefab can be embedded seamlessly into applications and reused across projects. WaveMaker provides a guided workflow to create, configure, test, and publish your own Prefabs.

Creating a New Prefab​

To build your own Prefab:

  1. Open the Project Dashboard and navigate to the Prefab tab.
  2. Click Create to start a new Prefab.
  3. Enter a meaningful Name, choose an Icon for the Prefab avatar, and add a Description.
  4. Review the Package and Copyright information, make adjustments if needed, and click Save to proceed.

Configuring the Prefab​

After creation, configure your Prefab under Project Configurations → Settings → Config Prefab. Configuration options are grouped for convenience:

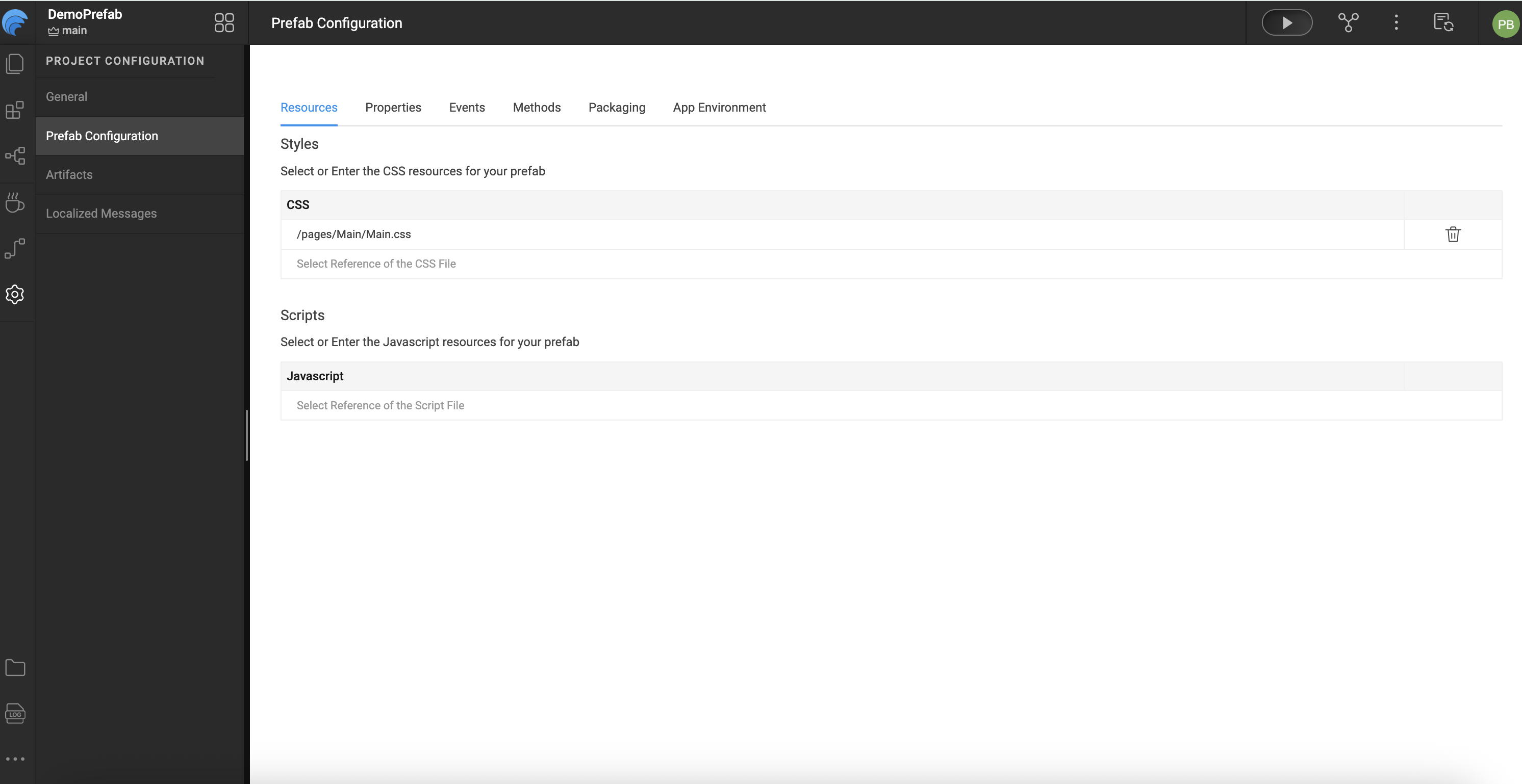

Resources​

  • Style: Apply CSS styles to the Prefab or include your own style files.
  • Script: Add JavaScript files that need to run before the Prefab load.

prefabs

Defining Properties​

WaveMaker allows you to define properties that users of the Prefab can set or bind.

UI Properties​

UI properties appear in the Properties panel when the Prefab is used in an application. These include:

  • Name: Internal identifier (lowercase).
  • Display Name: Label shown in the Properties panel.
  • Description: Help text for the property and documentation generation.
  • Data Type: Type of value accepted by the property.
  • Default Value: Fallback value if none is provided.
  • Binding Type: Controls how the property can be bound:
    • in-bound — Accepts incoming values.
    • out-bound — Outputs values for binding.
    • in-out-bound — Supports both.
  • Widget Settings: Defines how the property appears in the panel (widget type, visibility, disabled state, and show conditions).

Server Properties​

Server properties are set using backend services or Java and typically include elements like authorization tokens or other server-side values. These include:

  • Name
  • Default Value

prefabs

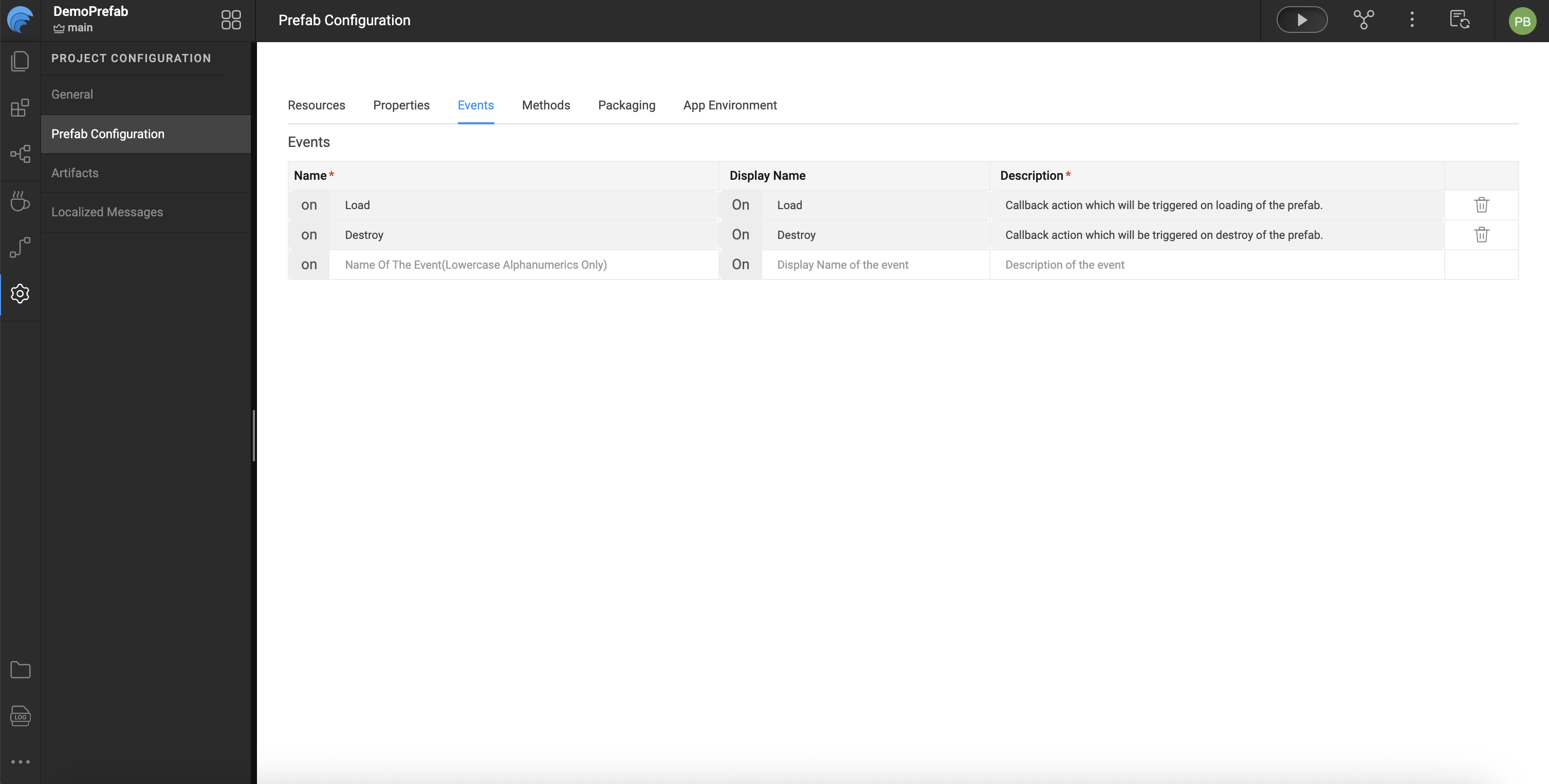

Defining Events​

Prefabs support events that application developers can handle when using the Prefab:

  • onLoad — Triggered when the Prefab is first added to a page or when the page loads.
  • onDestroy — Triggered when the Prefab is removed or the page closes.
  • Custom Events — Additional events defined by the Prefab developer can be added and exposed in the Events tab.

Each event includes:

  • Name — Event identifier (prefixed with on).
  • Description — Used in documentation when the Prefab is published.

Event Flow Notes:

  • onPropertyChange is triggered when a property changes internally but is not exposed to the end user.
  • Custom events must be explicitly triggered within the Prefab using code such as:
    Prefab.on<event_name>($event, $data)

prefabs

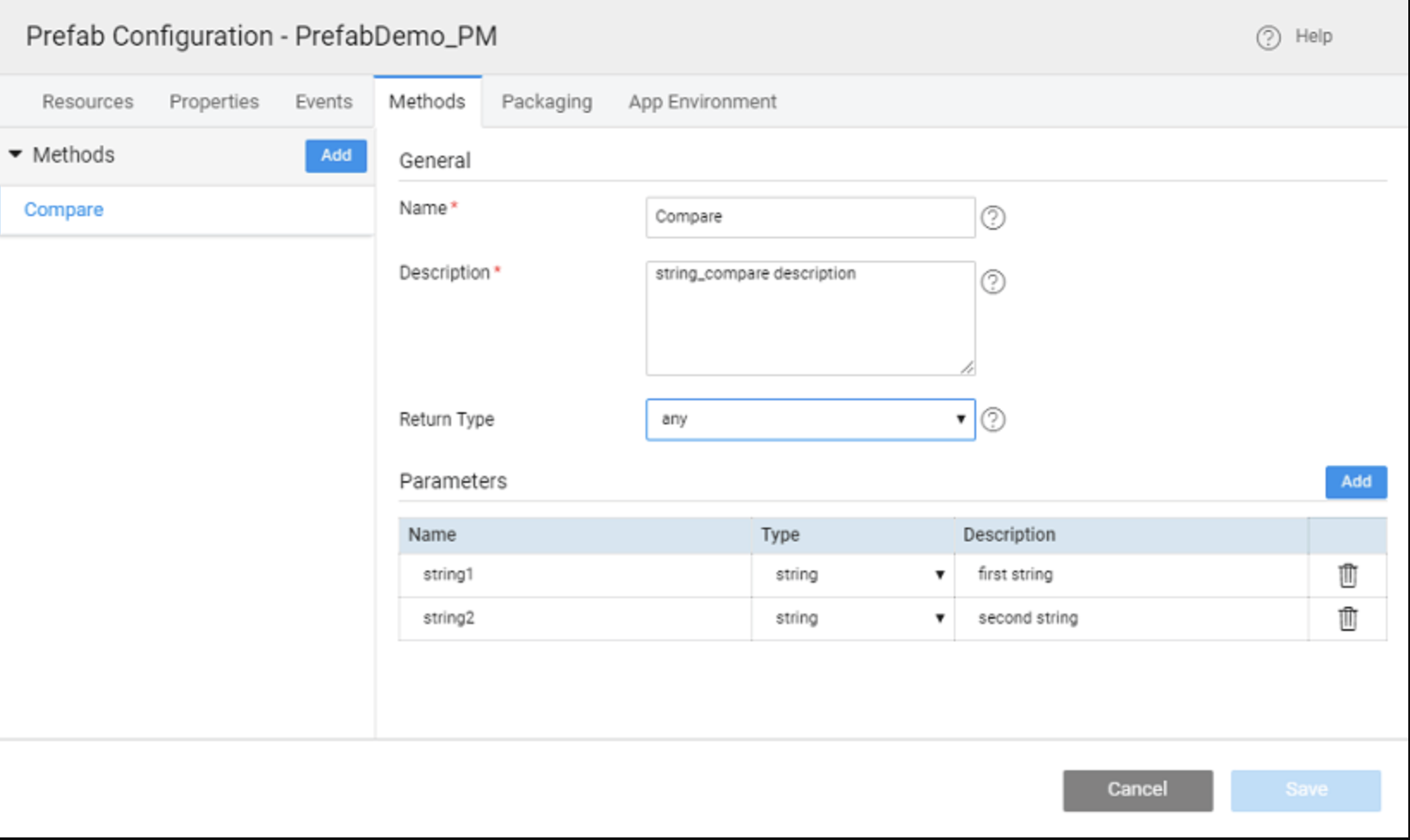

Defining Methods​

Developers can add reusable functions to Prefabs:

  • Name — Method name.
  • Description — Used for Prefab documentation.
  • Return Type — Data type returned by the method.
  • Parameters — Inputs required by the method.

Methods can be invoked in applications using:

Page.<prefab_name>.<method_name>(<parameters>)

If a method is referenced but not defined, WaveMaker will generate a placeholder in the Prefab’s script tab.

prefabs

Testing the Prefab​

WaveMaker includes a built-in Preview option for testing Prefabs:

  • Enter values for inbound properties.
  • View results via the outbound properties tab.
  • Invoke defined methods through the Methods tab.
  • Observe triggered events from the Events tab.

Summary​

WaveMaker Prefabs are modular, reusable components that encapsulate UI, logic, and service integrations. Once created, they can be packaged with a name and icon, tested via the built-in Preview for properties, methods, and events, and published to a project, workspace, team, or enterprise repository. Updates require incrementing the version number, with WaveMaker handling version conflicts and prompting projects to update. Prefabs streamline development by enabling drag-and-drop reuse across multiple applications.
