Styling Architecture

In a Design System project, styling in WaveMaker follows a structured, token-driven architecture.

The system ensures consistency, controlled customization, and safe extensibility.

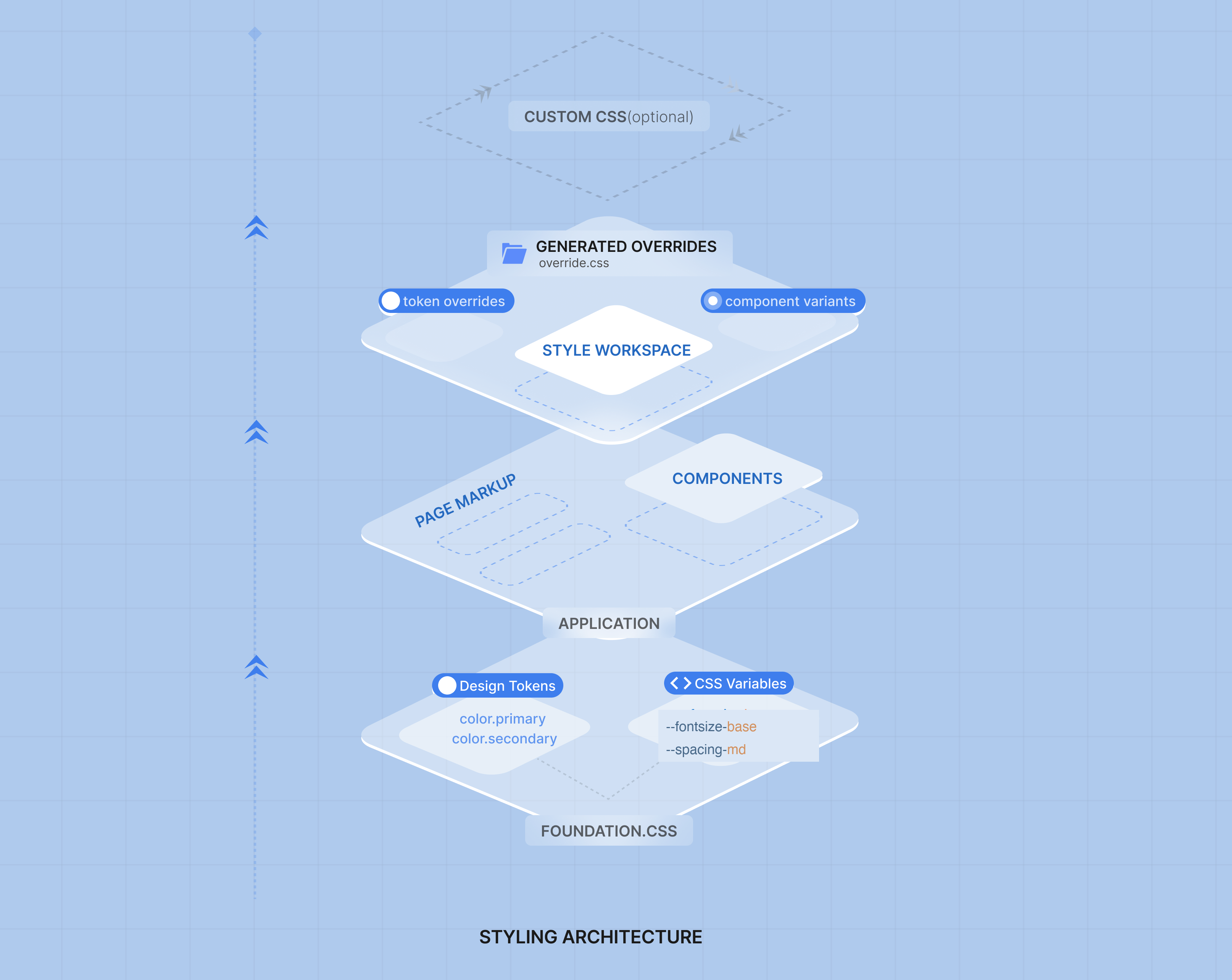

Styling Flow Overview​

1. Design Token Mapping​

This layer connects external or predefined design tokens to WaveMaker's internal styling system.

It ensures:

  • Tokens are recognized by the platform
  • Naming conventions are aligned
  • Tokens can be consumed through CSS variables
  • Styling remains system-driven, not hard-coded

This is the entry point of styling into the application runtime.

2. Foundation CSS​

Foundation CSS is the core styling engine of the project.

It is built entirely on CSS variables and defines:

  • Color system
  • Typography scale
  • Spacing system
  • Border radius
  • Elevation and shadows
  • Surface and background layers

All component styles resolve through these variables.

This enables:

  • Runtime theming
  • Centralized visual control
  • Scalable styling across the entire application

3. WaveMaker Components​

WaveMaker components are designed to:

  • Consume Foundation CSS variables
  • Avoid hard-coded styling values
  • Support system-based variants
  • Maintain consistent visual behavior

Components inherit their look and feel from the token layer.

This ensures:

  • Uniform UI across screens
  • Predictable styling behavior
  • Easy global updates through token changes

4. Style Workspace​

Style Workspace is the management layer for styling customization.

It allows developers to:

  • Modify token values
  • Create component variants
  • Extend design definitions safely
  • Preview changes in real-time

All customizations are structured and system-aware.

No direct CSS fragmentation.

5. Generated Overrides​

When tokens or component variants are modified:

  • Overridden tokens are tracked
  • Structured override files are generated (override.css)
  • Base Foundation CSS remains untouched

This ensures:

  • Upgrade safety
  • Clear separation between system and customization
  • Controlled extensibility

Runtime Behavior​

At runtime:

  • Foundation CSS injects token values as CSS variables
  • Components resolve styles using those variables
  • Overrides apply only where defined
  • The final WM application renders consistently

The system separates structure from styling, enabling applications to scale without visual inconsistency.

Summary​

Styling in a Design System project is:

  • Token-driven
  • CSS variable based
  • Component-governed
  • Workspace-managed
  • Override-controlled

This architecture ensures scalable, maintainable, and enterprise-ready UI development in WaveMaker.
